SPECIFICATIONS

● Intermediate position switches

● Switches in tandem version

● Remote position transmitter

● Magnetic limit and torque Transmitter

● Mechanical position indicator

● Functional safety: Up to SIL 2 in selected configurations

FEATURES

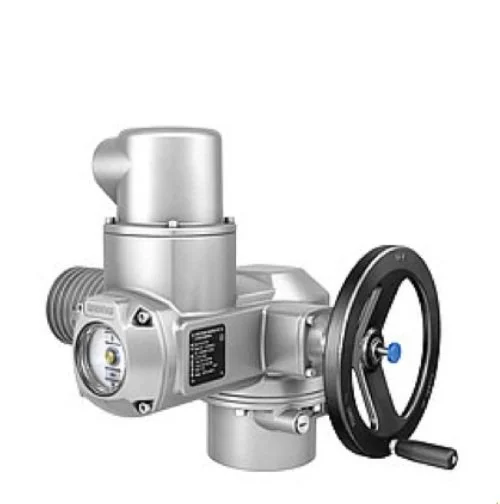

SQ

● Torque range from 50 Nm to 2,400 Nm

● Swing angles from 75° to 105°

● Operating time ranges for 90° from 4 s to 100 s

● Limit and torque seating

● 3-ph AC and 1-ph AC motors

● Handwheel for manual operation

● Mechanical Position indicator

SQR

● Torque range from 50 Nm to 2,400 Nm

● Modulating torque from 75 Nm to 1,200 Nm

● Max. number of starts 1,500 c/h

● Swing angles from 75° to 105°

● Operating time ranges for 90° from 8 s to 100 s

● Limit and torque seating

● 3-ph AC and 1-ph AC motors

● Handwheel for manual operation
